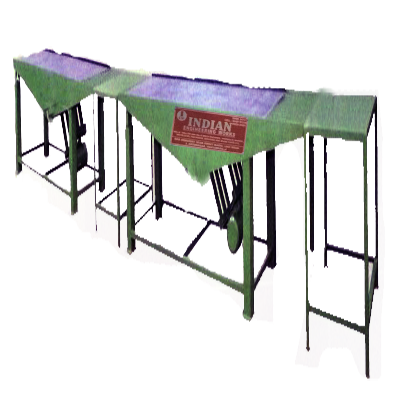

VIBRO FORMING TABLE

(Semi-Automatic)

Technical Specifications

Production Capacity	2000 sq.ft./8 hours shift (indicative only; actual production depends on availability of molds and concrete filling speeds into the molds)
Power	4 H.P. (2 H.P. motor * 2 tables)
Vibrating Table Size	835 x 3000 mm
Maximum Height of the Tile	100 x 100 mm
Movement of the Rubber Mould in Vibration Table	Due to vibration with manual intervention
Total Weight	500 Kg x 2 (approx.)

Note: All specifications are subject to change. For conditions of sale, refer to our invoice.
